Basic Info.
Model NO.
AL-CT-51
Usage
Single-phase Transformer, Power Transformer
Frequency Characteristics
High Frequency
Shape of Core
EI
Brand
AL TRANSFO
Payment
Flexible
Advantage
Provide OEM Service
Coil Structure
TOROIDAL
Quality
100% Tested
Transport Package
Standard Export Carton
Specification
80pcs/box
Trademark
AL TRANSFO
Origin
China
HS Code
85043190
Production Capacity
5000PCS/15days
Product Description
Product Description
Specification:
| item | value |
| Model Number | AL-CT-50 |

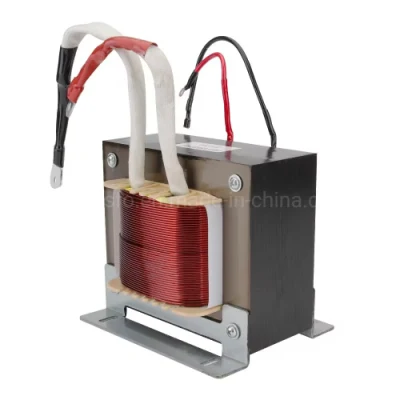

| Type | Saddle mount and lead wires Transformer |
| Place of Origin | China |
| Province | Anhui |
| Brand Name | AL |
| Color | Yellow |
| Advantage | High Quanlity |
| Frequency | High frequency |
| Usage | Power |
| Payment | Flexible |
| Phase | Single |
| Advantage | Provide OEM Service |
| Coil Structure | TOROIDAL |
| Quality | 100% Tested |
| Model Number | EE10, EE13, EE16, EE19, EE22, EE25, EE28 |
| Price | Negotiable |
| Application | Switching Power |
Features:
1) Specially used in switching power supply and kinds of high-frequency circuit.
2) Plays a role in oscillating and separating.
3) Small volume, light weight and nice appearance.
* Various types of transformers available, CI, UI, EFD,EP, ER, EPC, POT, RM, EE
* High Frequency transformer suitable for EL/CCFL Inverter or DC/DC converter
* Customer's designs are welcome
| Model Number | Specification | Needle Number Ratio | Length× Width× HEI ght |
| EE8.3 | Vertical | 2/3 | 8.3×5.4×5.4 |
| EE10 | Vertical | 2/3 | 10×8×8 |
| EE13 | Vertical | 2/3 | 13×12×12 |
| EE13 | Horizontal | 2/2 | 13×12×12 |
| EE16 | Vertical | 4/6 | 16×13×15 |
| EE16 | Horizontal | 3/3 | 16×13×15 |
| EE19 | Vertical | 3/4 | 19×16.5×16.5 |
| EE19 | Vertical | 5/5 | 19×16.5×16.5 |
| EE19 | Horizontal | 4/4 | 19×16.5×16.5 |
| EE22 | Vertical | 5/5 | 22×16×19 |
| EE25 | Vertical | 2/2 | 25.5×17×21 |
| EE25 | Horizontal | 4/4 | 25.5×17×21 |
| EE28 | Vertical | 6/6 | 28×22×20.5 |
| EI 30 | Horizontal | 5/5 | 30×25×22 |
| EI 30 | Vertical | 6/6 | 30×25×22 |
| EI 33 | Vertical | 7/7 | 33×27×25 |
| EC28 | Vertical | 6/6 | 28×22×20.5 |
| EC28 | Horizontal | 6/6 | 28×22×20.5 |
| EC42 | Vertical | 7/7 | 42×30×44 |
| EC35 | Horizontal | 7/7 | 35×28×27 |
| UF9.8 | Horizontal | 2/2 | 16×11×16 |
| UF10.5 | Horizontal | 2/2 | 18.5×17×21.5 |
| UF16 | Horizontal | 2/2 | 22×19×27 |
| O-type | 15×8.5×6 | - | 9×17 |
| O-type | 36×23×115 | - | 45×28.5×43 |
| O-type | 40×24×14.5 | - | 45×24×47 |
Packaging & Shipping
Other products
FAQ
1. Question: Lead time for samples?
Reply: 3-5 working days.
2. Question: Lead time for mass production?
Reply: 7 to 15 working days or depending on order quantity.
3. Question: What should provide to make custom transformer ?
Reply: Supply drawing is best, or tells us the size, inductance, resistance and etc.
4 . Question : What is payment term ?
Reply : T/T , Western Union , PayPal or negotiation.
