Overview

Basic Info.

Model NO.
SC(B) series
Usage
Power Transformer
Frequency Characteristics
Power Frequency
Shape of Core
OD
Brand
Tongxun-Lianwei
The Rated Voltage
10/20/35kv
Frequency
50/60Hz
Tapping Range
+-2X2.5%
Insulation Grade
F
Local Discharge
<10PC
Insulation Level
10kv Li75AC35/AC3 20kv Li125AC55/AC3 35kv Li200
Noise Level
Jb/T10888 dB
Cooling Way
an/Af
Protection Grade
IP20
Short Circuit Capacity
GB1094.5
Mode of Operation
Operation Mode
Epoxy
Resin Insulated
Dry Type
Transformer
Resistance
Short Circuit
Strong Resistance
Weather
Transport Package
Export Wooden Packing
Trademark
TONGXUN-LIANWEI
Origin
Chongqing, China
HS Code
8504101000

Product Description


Product Description

    The epoxy resin insulated dry-type transformer provided by our company has the following characteristics:
Resistance to short circuit and strong weather resistance: foil coil is used at low pressure, segmenting cylinder coil is used at high pressure, the coil is poured in epoxy resin, and the coil adopts advanced directional gel technology, so that epoxy resin gel reaction is thorough without stress accumulation. Excellent mechanical strength and weather resistance.
    Strong overload capacity, good flame retardant: the use of international advanced saturated packing thin insulation epoxy resin vacuum casting technology, so that the product has greater heat dissipation capacity and good flame retardant performance.
High heat resistance grade: H grade epoxy resin is adopted, which has better heat resistance.
Small local discharge: vacuum pouring pressure infiltration process and uniform field strength design, avoid residual bubbles during pouring, local discharge is very small.
    Environmental adaptability: the packed epoxy resin material is closer to the thermal expansion coefficient of the coil conductor, the temperature or load fusion will not cause cracking of the resin, and the dense epoxy resin insulation layer has 100% moisture and water resistance.

Environmental conditions:
1.Environment: indoor
2.Altitude: below 1000m
3.Earthquake intensity: 8 degrees
4.Ambient temperature: -25ºC - +40ºC
5.pollution level: according to provisions of GB/T16434-1996 3 pollution level, the leakage distance not less than 2.5 cm/kV (highest working voltages).

Product Parameters
General technical parameters
10-35kv Resin Insulated Dry Type Transformer for Power Distribution Low Voltage Sc (B) Series Outside Switchgear Enclosure
project unit Technical parameters
The rated voltage KV 10(20,35)/ 0.4
frequency Hz 50 / 60
Tapping range   ±2x2.5%
Insulation grade   F
Local discharge PC <10
Insulation level KV 10KV  LI75AC35/AC3
20KV  LI125AC55/AC3
35KV  LI200AC85/AC3
Noise level dB JB/T10888
Cooling way   AN/AF
Protection grade   IP20
Short circuit capacity   GB1094.5
Mode of operation   Operation mode


1.1 SC(B)10 series 10kV resin insulated dry type power transformer technical parameters
Product standard GB/T10228-2015
GB1094.11-2007
GB/T1094.12-2013
Capacity
Sr
Short-circuit impedance
Uk%
No-load loss
Po
Load loss
Pw
No-load current
Io%
connetion symbol Voltage
kV
Tapping range NVH Insulation grade
kVA % (W) 120ºC(W) % H.V. L.V. dB
30 4 190 710 2 Yyn0
OR
Dyn11
11
10.5
10
6.3
6
0.4 ±5%
±2×2.5%
63 F
50 270 1000 2 63
80 370 1380 1.5 65
100 400 1570 1.5 65
125 470 1850 1.3 66
160 540 2130 1.3 66
200 620 2530 1.1 67
250 720 2760 1.1 67
315 880 3470 1 69
400 980 3990 1 69
500 1160 4880 1 70
630 1340 5880 0.85 71
630 6 1300 5960 0.85 71
800 1520 6960 0.85 72
1000 1770 8130 0.85 72
1250 2090 9690 0.85 74
1600 2450 11700 0.85 75
2000 3050 14400 0.7 77
2500 3600 17100 0.7 78
1600 8 2450 12900 0.85 75
2000 3050 15900 0.7 77
2500 3600 18800 0.7 78

1.2  SC(B)11 series 10kV resin insulated dry type power transformer technical parameters
Product standards GB/T10228-2015 L.V. KV 0.4
GB1094.11-2007
Insulation grade F Tapping range ±5% OR ±2×2.5%
H.V. kV 11,10.5,10,6.3,6 connetion symbol Yyn0 OR Dyn11
Capacity
Sr
Short-circuit impedance
Uk%
No-load loss
Po
Load loss
Pw
No-load current
Io%
Sound power level
NVH
Weight
G.W.
L B H l b h m k d g
kVA % W 120ºC(W) % dB kg mm mm mm mm mm mm mm mm mm mm
30 4 170 710 1.8 63 345 1250 1050 1200 935 620 1013 400 275 225 280
50 240 1000 1.8 63 440 1250 1050 1200 955 620 1041 400 300 235 290
80 330 1380 1.3 65 550 1300 1050 1200 970 620 1059 550 320 240 295
100 360 1570 1.3 65 625 1350 1050 1250 990 620 1087 550 325 245 300
125 420 1850 1.1 66 780 1350 1100 1250 1010 620 1102 550 335 255 310
160 490 2130 1.1 66 1000 1400 1100 1300 1030 620 1118 550 345 260 315
200 560 2530 1 67 1140 1450 1100 1350 1060 710 1135 660 350 265 320
250 650 2760 1 67 1360 1500 1150 1400 1100 710 1159 660 365 275 325
315 790 3470 0.9 69 1580 1500 1200 1450 1150 710 1194 660 375 280 330
400 880 3990 0.9 69 1850 1600 1250 1600 1260 870 1284 660 400 320 360
500 1040 4880 0.9 70 2160 1600 1300 1650 1290 870 1355 820 410 325 365
630 6 1170 5960 0.75 71 2275 1700 1300 1650 1340 870 1340 820 445 310 350
800 1370 6960 0.75 72 2680 1900 1300 1800 1550 870 1570 820 480 330 375
1000 1590 8130 0.75 72 3290 1850 1300 1850 1550 870 1620 820 490 330 375
1250 1890 9690 0.75 74 3790 1950 1300 1950 1570 870 1714 820 515 365 399
1600 2210 11730 0.75 75 4800 2000 1400 2100 1650 1120 1787 1070 535 380 420
2000 2750 14450 0.75 77 5680 2150 1500 2200 1770 1120 1859 1070 580 405 430
2500 3240 17170 0.6 78 6770 2200 1500 2200 1870 1120 1944 1070 605 425 440
1600 8 2210 12960 0.6 75 4800 2000 1400 2100 1650 1120 1787 1070 535 380 420
2000 2750 15960 0.75 77 5680 2150 1500 2200 1770 1120 1859 1070 580 405 430
2500 3240 18890 0.6 78 6770 2200 1500 2200 1870 1120 1944 1070 605 425 440
10-35kv Resin Insulated Dry Type Transformer for Power Distribution Low Voltage Sc (B) Series Outside Switchgear Enclosure
1.3  Technical parameters of 10kV class resin insulated dry type on-load voltage regulating power transformer
Product standard GB/T10228-2015
GB1094.11-2007
GB/T1094.12-2013
Capacity
Sr
Short-circuit impedance
Uk%
No-load loss
Po
Load loss
Pw
No-load current
Io%
connetion symbol Voltage
kV
Tapping range NVH Insulation grade
kVA % (W) 120ºC(W) % H.V. L.V. dB
315 4 990 3610 1.1 Yyn0 Dyn11 11
10.5
10
6.3
6
0.4 ±3×2.5%±4×2.5% 69 F
400 1125 4275 1.1 69
500 1296 5225 1.1 70
630 1494 6175 1 71
630 6 1440 6365 1 71
800 1710 7505 1 72
1000 1980 8788 0.85 72
1250 2340 10450 0.85 74
1600 2727 12445 0.85 75
2000 3420 15200 0.7 77
2500 3960 18145 0.7 78

1.4  Technical parameters of 20kV class resin insulated dry type on-load voltage regulating power transformer
Product standard GB/T10228-2015
GB1094.11-2007
GB/T1094.12-2013
Capacity
Sr
Short-circuit impedance
Uk%
No-load loss
Po
Load loss
Pw
No-load current
Io%
connetion symbol Voltage
kV
Tapping range NVH Insulation grade
kVA % (W) 120ºC(W) % H.V. L.V. dB
50 6 340 1230 2 Yyn0 Dyn11 20
22
24
0.4 ±5%
±2×2.5%
64 F
100 540 1990 1.8 65
160 670 2470 1.5 66
200 730 2940 1.5 68
250 840 3420 1.3 68
315 970 4080 1.3 70
400 1150 4840 1.1 70
500 1350 5790 1.1 70
630 1530 6840 1 72
800 1750 8260 1 72
1000 2070 9780 0.85 72
1250 2380 11500 0.85 76
1600 2790 13800 0.85 76
2000 3240 16300 0.8 78
2500 3870 19300 0.8 78
2000 8 3240 17800 0.8 78
2500 3870 21200 0.8 78

1.5  Technical parameters of 35kV class 10 resin insulated dry type power transformer
Capacity
Sr
Short-circuit impedance
Uk%
No-load loss
Po
Load loss
Pw
No-load current
Io%
connetion symbol Voltage
kV
Tapping range NVH Insulation grade
kVA % (W) 120ºC(W) % H.V. L.V. dB
50 6 450 1420 2.3 Yyn0 Dyn11 33
35
36.5
38.5
0.4 ±5%
±2×2.5%
64 F
80 550 1820 2.3 64
100 630 2090 2 65
160 790 2810 1.5 66
200 880 3320 1.5 68
250 990 3800 1.3 68
315 1170 4510 1.3 70
400 1370 5410 1.1 70
500 1620 6650 1.1 70
630 1860 7690 1 72
800 2160 9120 1 72
1000 2430 10400 0.75 72
1250 2830 12700 0.75 76
1600 3240 15400 0.75 76
2000 3820 18200 0.75 78
2500 4450 21800 0.75 78
800 6 2250 9400 0.95 Yyn0 Dyn11
Yd11
3.15
6
6.3
10
10.5
11
72
1000 2670 10900 0.95 72
1250 3130 12900 0.85 76
1600 3690 15400 0.85 76
2000 7 4230 18200 0.75 78
2500 4860 21800 0.75 78
3150 8 6030 24500 0.7 78
4000 7020 29400 0.7 85
5000 8370 34900 0.6 85
6300 9900 40800 0.6 85
8000 9 11300 46000 0.5 Dyn11
YNd11
Yd11
88
10000 12900 55500 0.5 88
12500 15700 64600 0.4 6
6.3
10
10.5
11
88
16000 19300 76000 0.4 93
20000 10 22900 85500 0.35 93
25000 27100 101000 0.35 93

1.6  SC(B)H15 series 10kV class resin insulated amorphous alloy dry distribution transformer technical parameters table

Product standards GB/T10228-2015,GB/T22072-2018,GB/T1094.12-2013 L.V. KV 0.4
Insulation grade F Tapping range ±5% OR ±2×2.5%
H.V. kV 11,10.5,10,6.3,6 connetion symbol Yyn0 OR Dyn11
Capacity
Sr
Short-circuit impedance
Uk%
No-load loss
Po
Load loss
Pw
No-load current
Io%
Sound power level
NVH
Weight
G.W.
l b h m k d g
kVA % W 120ºC(W) % dB kg mm mm mm mm mm mm mm
30 4 70 710 0.6 60 345 935 620 1013 400 275 225 280
50 90 1000 0.5 60 440 955 620 1041 400 300 235 290
80 120 1380 0.5 62 550 970 620 1059 550 320 240 295
100 130 1570 0.5 62 625 990 620 1087 550 325 245 300
125 150 1850 0.4 63 780 1010 620 1102 550 335 255 310
160 170 2130 0.4 63 1000 1030 620 1118 550 345 260 315
200 200 2530 0.4 64 1140 1060 710 1135 660 350 265 320
250 230 2760 0.4 64 1360 1100 710 1159 660 365 275 325
315 280 3470 0.3 66 1580 1150 710 1194 660 375 280 330
400 310 3990 0.3 66 1850 1260 870 1284 660 400 320 360
500 360 4880 0.3 67 2160 1290 870 1355 820 410 325 365
630 420 5880 0.3 68 2265 1340 870 1340 820 445 310 350
630 6 410 5960 0.3 68 2275 1340 870 1340 820 445 310 350
800 480 6960 0.3 69 2680 1550 870 1570 820 480 330 375
1000 550 8130 0.2 69 3290 1550 870 1620 820 490 330 375
1250 650 9690 0.2 71 3790 1570 870 1714 820 515 365 399
1600 760 11730 0.2 72 4800 1650 1120 1787 1070 535 380 420
2000 1000 14450 0.2 74 5680 1770 1120 1859 1070 580 405 430
2500 1200 17170 0.2 75 6770 1870 1120 1944 1070 605 425 440
1600 8 760 12960 0.2 72 4950 1730 1120 1880 1070 560 400 440
2000 1000 15960 0.2 74 5850 1860 1120 1950 1070 610 430 450
2500 1200 18890 0.2 75 6973 1960 1120 2040 1070 640 450 460
Certifications



10-35kv Resin Insulated Dry Type Transformer for Power Distribution Low Voltage Sc (B) Series Outside Switchgear Enclosure

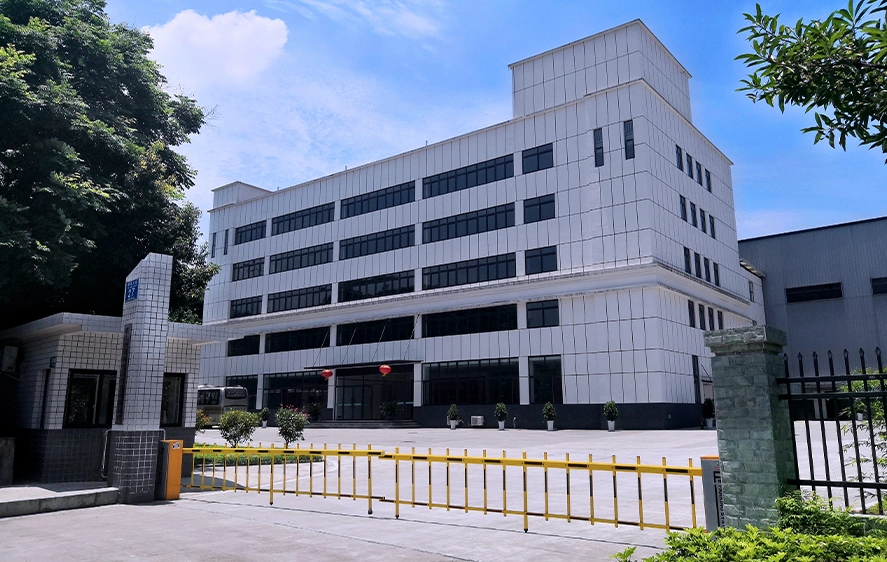

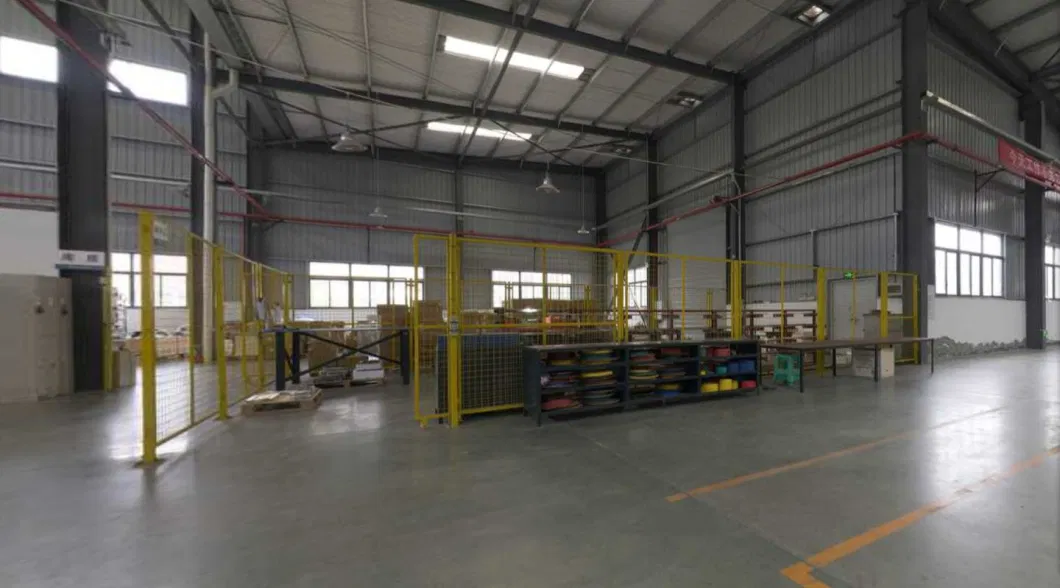

Company Profile

  Chongqing Lianwei Power Technology development Co., Ltd.(Tongxun Power Industry Co., Ltd.)  was established in April 1989, located in Lidu Industrial Park, Fuling District, Chongqing. It has a 30-year history of production and development of complete electrical equipment. The company's predecessor is Fuling Three Gorges Electric Appliance Factory of Chongqing Yuneng Group, which was later assigned to Chongqing East Asia Group. In 2006, it was transformed into Chongqing Dixun Electric Technology Co., Ltd. and in 2013, it was renamed Chongqing Taiwei Electric Equipment Co., Ltd. in October 2015, it was reorganized into Chongqing Lianwei Power Technology development Co., Ltd.(Tongxun Power Industry Co., Ltd.)with wholly-owned subsidiaries of Lanzhou Changyao Distribution Engineering Co., Ltd., Lanzhou Guowei Power Supply Co., Ltd. and Chongqing Lianwei Power Technology Development Co., Ltd. The company is a group with integrated the general contracting of electric power projects, the loading, repairing, testing, manufacturing of electric power equipment, operation and maintenance of electric power systems and import and export trade.

     Since 1989, being in line with the "Honesty and Trustworthy, customer first" corporate purpose and adherence to the "innovative, pragmatic, pioneering and enterprising" spirit, the company has shaped the "integrity, excellence, exquisite, value" brand image. Since 2000, the company has been successively awarded the following honorary titles: "Quality Designated Demonstration Unit", "Chongqing Famous Product", "Best District Civilization Unit", "A Class Taxpayer", and "National Quality Stable Qualified Product". The company has one patent for invention and six patents for utility model.

    Chongqing Lianwei Power Technology development Co., Ltd.(Tongxun Power Industry Co., Ltd.)  is looking forward to working with you to create a bright and brilliant tomorrow with good corporate reputation, excellent .

10-35kv Resin Insulated Dry Type Transformer for Power Distribution Low Voltage Sc (B) Series Outside Switchgear Enclosure

Our Advantages
10-35kv Resin Insulated Dry Type Transformer for Power Distribution Low Voltage Sc (B) Series Outside Switchgear Enclosure
10-35kv Resin Insulated Dry Type Transformer for Power Distribution Low Voltage Sc (B) Series Outside Switchgear Enclosure
10-35kv Resin Insulated Dry Type Transformer for Power Distribution Low Voltage Sc (B) Series Outside Switchgear Enclosure



Engineering cases
Tajikistan dangora 220KV substation
Katabang thermal power plant, Indonesia
Coal-fired power plant in riau, Indonesia
Vietnam north electric co. 's Hanoi van doon substation
East timor substation for Chinese nuclear industry
China institute of engineering physics
Xi 'an, China aviation industry corporation
Panzhihua xingang vanadium titanium xichang production
base
Longdong hydropower station in ya 'an, sichuan province
Batang langda hydropower station in ganzi prefecture
Sichuan guangan forward substation
Xiaojin county jiesigou secondary hydropower station
Luzhou hejiang longtan substation
Yunnan diqing north substation
Country garden lanzhou new city project
Country garden lanzhou new district project
Deyang country garden, sichuan
Nanchong country garden, sichuan
Guiyang poly group
Chongqing poly group
China railway group fuling beishan new town project
Raffles plaza, chongqing
Chongqing jiangbei international airport
Datang international wulong xingshun wind farm
Xiuzhou photovoltaic power generation project in jiaxing
Jiangsu dongtai photovoltaic power project
Guizhou kaiphosphorus holding group co. LTD
Chongqing jianfeng group
Chongqing huafeng group
Chongqing nanfu aluminum industry
Chongqing changjiang normal university
Chongqing vocational and technical college of industry
and trade
Chongqing university
Chongqing jiaotong university
Chongqing rail transit group
Chongqing electromechanical group
Chongqing changan group
Chongqing iron and steel group longevity production base
construction project
Chongqing wanda sheet fuling production base
Chongqing leading port construction project
Chongqing fuling gaishan bay traffic hub
Chongqing fuling sewage treatment plant
Sichuan guangyuan sewage treatment plant

10-35kv Resin Insulated Dry Type Transformer for Power Distribution Low Voltage Sc (B) Series Outside Switchgear Enclosure
Reception of Foreign Merchants

10-35kv Resin Insulated Dry Type Transformer for Power Distribution Low Voltage Sc (B) Series Outside Switchgear Enclosure10-35kv Resin Insulated Dry Type Transformer for Power Distribution Low Voltage Sc (B) Series Outside Switchgear Enclosure



Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
