Basic Info.
Usage
Single-phase Transformer, Rectifier Transformer, Combined Transformer, Power Transformer, Distribution Transformer
Frequency Characteristics
Low Frequency
Shape of Core
OD
Brand
Sunhyor
Winding
Copper
Lead Wire Length
Customization
Core Parts
Silicon Steel
Dimension
Can Be Designed
Transport Package
Export Carton
Specification
customized
Trademark
Sunhyor
Origin
Dongguan, China
HS Code
8504232900
Production Capacity
500000piece Per Month
Product Description

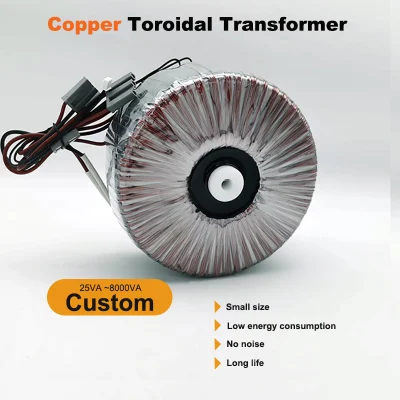

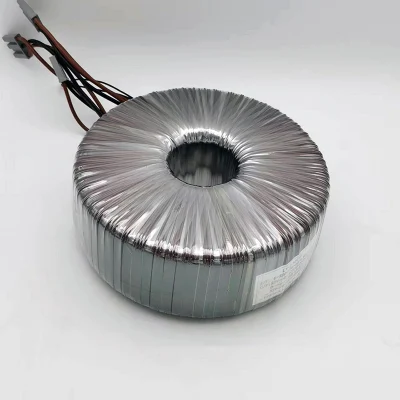

Amplifier Power Supply 220V 120V 12V 24V 36V 48V Toroidal Transformer Customization China Vendor
The toroidal transformer is made up of high grade steel core and copper wire to minimize the distortion. The large power capacity enables the amplifier to drive your speakers with little extra power needed. It's suitable for low frequency or large current requirement applications, such as audio power amplifier, home theater, karaoke & professional sound system.
Specification
Appliance of our toroidal transformers
Advantages of toroid core transformer
Main production process of toroidal transformer
Overview of our company
Sunhyor is a comprehensive company integrating production, sales and research and development of toroidal transformers.
OEM and ODB are supported.
Two assembly methodes
Packing & Delivery
please contact us for the most suitable carrier for you.
FAQ
1.Q:Can I get a sample before placing trial order?
A: Sure,you can.Please contact our sales representative for more details.
2.Q:What's your delivery time?
A: It depends on your order quantity.
Normally,for samples,it takes about 5-7 days;for mass production,it takes about 25-30 days after receiving your deposit.
3.Q:What's your price terms?
A: EXW,FOB,CFR,CIF etc are available .
4.Q:What about your payment terms?
A: TT 30% deposit in advance and balance 70% will be paid off before delivery.
5.Q:Is it support to print my logo on the label?
A: No problems,we can make it as per your requirements.
Should any interested,welcome to contact us.
The toroidal transformer is made up of high grade steel core and copper wire to minimize the distortion. The large power capacity enables the amplifier to drive your speakers with little extra power needed. It's suitable for low frequency or large current requirement applications, such as audio power amplifier, home theater, karaoke & professional sound system.
Specification
| Item | Model | Rated Power | Voltage Regulation (%) | Effciency(%) | Weight (KG) | Dimension(mm) | |
| Height | Diameter | ||||||
| 1 | HB25 | 25VA | 20 | 73 | 0.4 | 25 | 68 |
| 2 | HB30 | 30VA | 16.5 | 76.6 | 0.5 | 25 | 72 |
| 3 | HB40 | 40VA | 15.8 | 80.2 | 0.6 | 33 | 79 |
| 4 | HB50 | 50VA | 15.2 | 82.4 | 0.7 | 33 | 84 |
| 5 | HB63 | 63VA | 13.8 | 83.5 | 0.8 | 34 | 89 |
| 6 | HB80 | 80VA | 12.6 | 84.7 | 1 | 34 | 95 |
| 7 | HB100 | 100VA | 11.2 | 86.5 | 1.3 | 35 | 105 |
| 8 | HB105 | 105VA | 10.8 | 86.8 | 1.4 | 35 | 109 |
| 9 | HB125 | 125VA | 9.6 | 87.3 | 1.6 | 40 | 110 |
| 10 | HB150 | 150VA | 7.2 | 88.1 | 2 | 42 | 116 |
| 11 | HB160 | 160VA | 6.6 | 88.6 | 2.1 | 42 | 118 |
| 12 | HB200 | 200VA | 6.1 | 89.7 | 2.4 | 48 | 120 |
| 13 | HB250 | 250VA | 5.5 | 90.3 | 2.9 | 50 | 127 |
| 14 | HB300 | 300VA | 5.2 | 91.7 | 3.2 | 55 | 128 |
| 15 | HB400 | 400VA | 4.6 | 93.8 | 4.7 | 70 | 133 |
| 16 | HB500 | 500VA | 4.3 | 94.6 | 5.5 | 72 | 140 |
| 17 | HB630 | 630VA | 4.1 | 95 | 6.7 | 72 | 155 |
| 18 | HB800 | 800VA | 3.8 | 95.1 | 8.2 | 72 | 170 |
| 19 | HB1000 | 1000VA | 3.3 | 95.8 | 10 | 78 | 180 |
| 20 | HB1250 | 1250VA | 2.9 | 96.2 | 12.3 | 80 | 198 |
| 21 | HB1600 | 1600VA | 2.8 | 96.6 | 14.8 | 86 | 210 |
| 22 | HB2000 | 2000VA | 2.5 | 96.9 | 16.9 | 90 | 232 |
| 23 | HB2500 | 2500VA | 2.3 | 97.3 | 18.8 | 100 | 245 |
| 24 | HB3000 | 3000VA | 2.1 | 97.7 | 21.3 | 110 | 255 |
| 25 | HB5000 | 5000VA | 1.9 | 98.1 | 23.8 | 120 | 270 |
| Remark:Above standard parameters of general transformer are just for your reference,we can design by your requirements. | |||||||
Appliance of our toroidal transformers
Advantages of toroid core transformer
Main production process of toroidal transformer
Overview of our company
Sunhyor is a comprehensive company integrating production, sales and research and development of toroidal transformers.
OEM and ODB are supported.
Two assembly methodes
Packing & Delivery
please contact us for the most suitable carrier for you.
FAQ
1.Q:Can I get a sample before placing trial order?
A: Sure,you can.Please contact our sales representative for more details.
2.Q:What's your delivery time?
A: It depends on your order quantity.
Normally,for samples,it takes about 5-7 days;for mass production,it takes about 25-30 days after receiving your deposit.
3.Q:What's your price terms?
A: EXW,FOB,CFR,CIF etc are available .
4.Q:What about your payment terms?
A: TT 30% deposit in advance and balance 70% will be paid off before delivery.
5.Q:Is it support to print my logo on the label?
A: No problems,we can make it as per your requirements.
Should any interested,welcome to contact us.
